Walkera QL 1200 EFI hybrid, 30 x Zoom 4K camera
Call for Price
- Description
- Size Guide
- Reviews (0)
Description
Walkera QL 1200 adopt the advanced EFI gasoline engine and generator integrated power supply technology, which combines the advantages of petrol and electric power. Powered by petrol, which retains the high energy of fuel, and the electric power drive the rotor retains the characteristics of electric drive maneuvering. The MAX flight time Is 120 mins (5l tank version), normal version is 90 mins.. Four times more than electric multi-rotor UAV and can fly 72 km distance.
- Flight Safety
Using Flight Safety assurance system, GPS/GLONASS or BDS/GLONASS dual redundant satellite positioning, provide reliable guarantee.
- infrared obstacle avoidance
The pre-vision infrared obstacle avoidance module, the lower visual infrared fixed high equipmentand optical flow positioning module, can make the aircraft positioning more accurate, perceive the flight obstacle, reduce the accident caused by the mistake operation.
- Emergency battery system can alternate emergency cut-off security.
Equipped with 44.4V 1800mAh 72C emergency lithium battery, it can provide 1.5 mins emergency standby battery and support emergency prepareness.

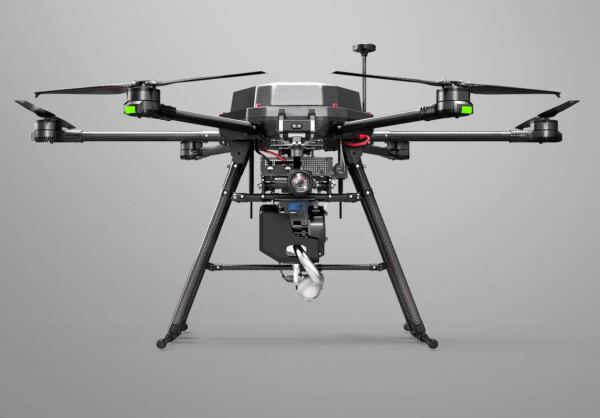

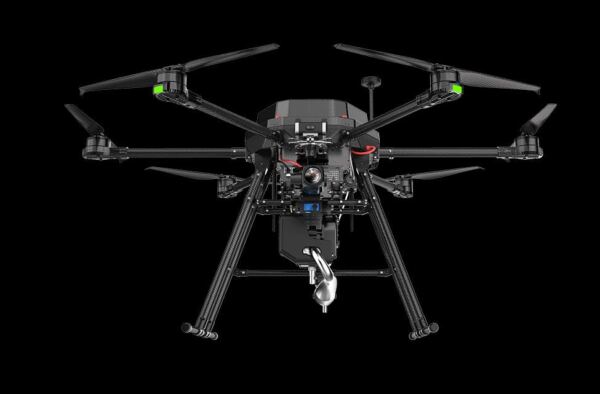

- Six axis rotor design
The six-axis rotor structure can improve power failure tolerance.
- 2.4G/5,8 Ghz high quality digital image transmission, 3-5km image transmission
QL 1200 uses 2.4G/5,8Ghz digital image transmission system, with long wavelength, strong anti-interference (diffraction) ability, stable and reliable transmission, image transmission range up to 3-5 kilometers.
- Special software for industry application
For the special needs of industry application, we develop a special APP for QL1200, simplify and easy operation. It supports intelligent flight functions such as automatic return flight, automatic takeoff and landing, intelligent smart follow, way point, and flight point to point.

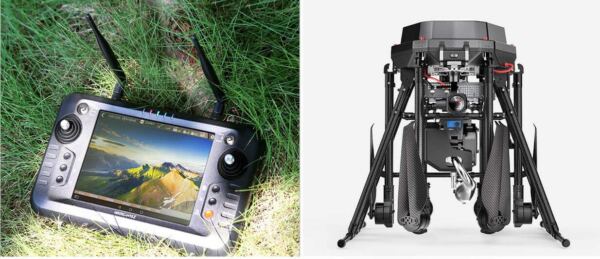

- Radio-control system with integrated ground contol. All-in-one transmitter system includes a big LCD screen for real time video from the drone and groind control software.
G3EFI electronic fuel injection control power system uses electronic control device instead of traditional mechanical system to control the fuel supply process of the engine. Sensors are used to detect the parameter signals of the engine operation. After calculation, analysis and comparison, the trigger angle, fuel injection, ignition, cold engine start-up compensation and acceleration compensation are set up by the electronic control unit (ECU), so as to ensure the safety of the engine. The engine always works in the best condition.
Easy To fit Any Environment
Dust-free, Waterproof, Anti-disturbance
With IP43 protection: Basic waterproof &dust-free. Strong wind resistance of 5 levels, flight altitude can reach to 5km.
Strong anti- electromagnetic interference ability, be able to carry out the inspection and inspection of powerful
electromagnetic radiation equipment such as power facilities and communication facilities.
Specifications:
Aircraft
| Symmetrical motor wheelbase | 1285mm |
| Fuselage size | Unfold1200×1360×690mm； Folded:590×654×690mm |
| Propeller size | Diameter×pitch: 24×7.9 inch |
| Weight | Self-weight (including battery without fuel) 14.75kg; maximum take-off weight 18kg |
| Remote Control | WKRC-H15Z |
| Brushless Motor | KV value: 180 rpm / V; stator size: 62×15 mm |
| Brushless ESC | Continuous current: 80A; Support battery: 6~12S; PWM input level signal: 3.3V/5V compatible; Compatible signal frequency: 50~500Hz |
| Max. rising speed | 5m/s |
| Max. falling speed | 3m/s |
| Max. horizontal flight speed | Positioning mode 5m/s, common mode 8m/s, attitude mode 15m/s |
| Max. tilt angle | Positioning mode 20°,common mode 22°, attitude mode 20° |
| Max. angular velocity | 120°/s |
| Max. flight altitude | 5000m |
| Max. wind speed | 8m/s |
| Hover accuracy | Vertical: ±0.5m (when GPS positioning is working normally); Level: ±1.5m (when GPS positioning is working normally) |
| Intelligent flight assist battery | 44.4V 1800mAh 75C 12S LiPo |
| No-load full oil maximum flight time | 90 minutes (120 mins 5l version) |
| Max. range | 43.2km |
| Working temperature | -10°C to +40°C |
EFI Engine
| Drive | Single Cylinder Gasoline Hybrid Engine |
| Weight | 4.5kg (including spare parts) |
| Size (L × W×H) | 230×226×260mm (without silencer) |
| Displacement | 32CC |
| Generator | WK-WS-100-001 |
| Power | 2.4KW |
| Output voltage | DC50V |
| Power battery | 12S (Capacity ≥ 1800mAh, discharge rate ≥ 75C) |
| Oil Consumption | 900g/kw.H (Hover 1.8 L/H) |
| Spark plug | NGK CMR7H |
| Fuel type | 95 # above unleaded gasoline + 2T synthetic lubricant |
| Fuel ratio | 25：1 |
| Environment temperature | -20℃ to 40℃ |
| Maximum altitude | 5000m |
Gimbal
| Stable System | 3 Axis (Pitch, Roll, Level) |
| Controllable accuracy | Static：±0.008°； Motion：±0.02°； Shake-proof：±0.008° |
| Controllable range | Pitch：-110° to +60°； Leve：±150°; Roll：±10° |
| Max. controllable speed | Pitch:30°/s； Level:30°/s; Roll： direct control angle |
Camera
| Sensor | 1/2.3 SONY IMX117 CMOS |
| ISO Range | 100-3200(Video) / 100-1600(Photo) |
| Video Resolution | 4K 30fps |
| Photo Resolution | 3840×2160 |
| Focal Lenth | 6.7-134.5mm |
| Zoom Ratio | 30X optical zoom |
| Zoom Speed | Auout 2.0s |
| Horizontal View | 59.8°- 3.0°(Wide Angle-Telescopic) |
| Close-shot Distance | 10 – 1500mm(Wide Angle-Telescopic) |
| Video Storage Maximum | 64Mbps |
| Compress Standar | H.264 / H.265 |
| Files format | JPG/MP4 |
| Support Micro-SD | Micro SDCard (Max. 128G,transmitting speed is C10 and above or UHS-1) |
Remote Controller
| Screen | 7.86inch; Resolution: 2048×1536; Brightness: 2000 cd/m2 |
| Working frequency | 2.4GHz & 5.8GHz dual frequency |
| Internal storage | RAM: 4G; ROM: 16G |
| System | Android 5.1 |
| Signal effective distance | About 6KM (open, no occlusion, no electromagnetic interference) |
| Video output interface | HDMI |
| Built-in battery | 7.4V 9000mAh LiPo 2S |
| Memory card type | Maximum support for 64GB microSD card |
| Type | Measurement | Typical size | |
|---|---|---|---|
| Airplane | wingspan | 1500-5000mm | |
| VTOL | wingspan | 2000-5000mm | |
| Helicopter | Rotor width | 1500-3000mm | |
| Quadcopter | diagonal motor to motor | 250-1100mm | |
| Hexacopter | as above | 500-1500mm | |
| Octocopter | as above | 800-1900mm |
