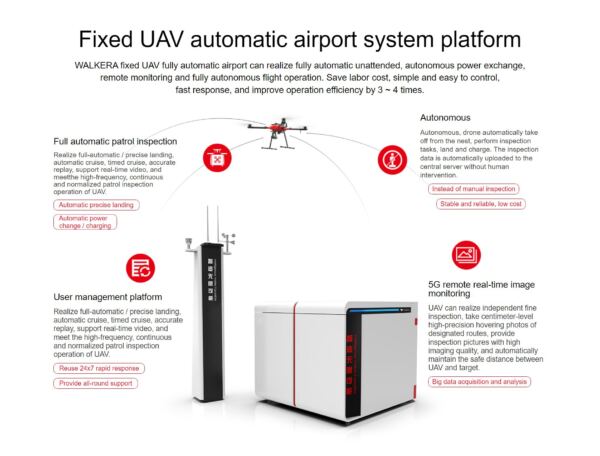

Fixed UAV automatic airport system platform
WALKERA fixed UAV fully automatic airport can realize fully automatic unattended, autonomous power exchange, remote monitoring, and fully autonomous flight operation. Save labor costs, simple and easy to control, fast response, and improve operation efficiency by 3 ~ 4 times.

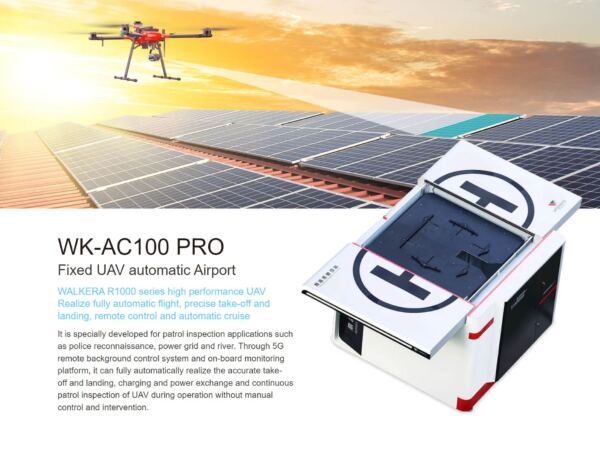

WK-AC100 PRO Fixed UAV automatic Airport
WALKERA R1000 series high-performance UAV utilizes fully automatic flight, precise take-off and landing, remote control, and automatic cruise It is specially developed for patrol inspection applications. Through 5G remote background control system and on-board monitoring platform, it can fully automatically utilize the accurate take-off and landing, charging and power exchange, and continuous patrol inspection of UAV during operation without manual control and intervention.

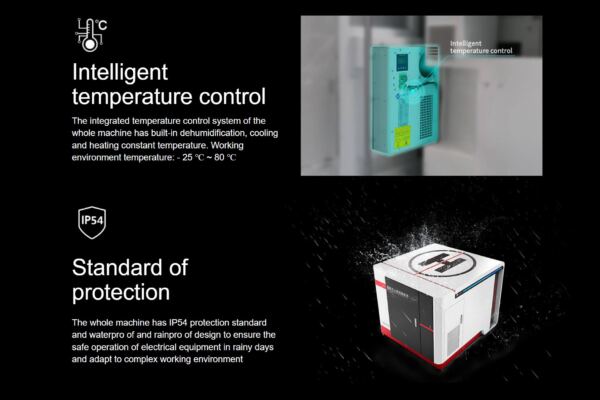

Intelligent temperature control
The integrated temperature control system of the whole machine has built-in dehumidification, cooling, and heating constant temperature. Working environment temperature: – 25 ℃ ~ 80 ℃
Standard of protection
The whole machine has an IP54 protection standard and a waterproof and rainproof design to ensure the safe operation of electrical equipment on rainy days and adapt to the complex working environment

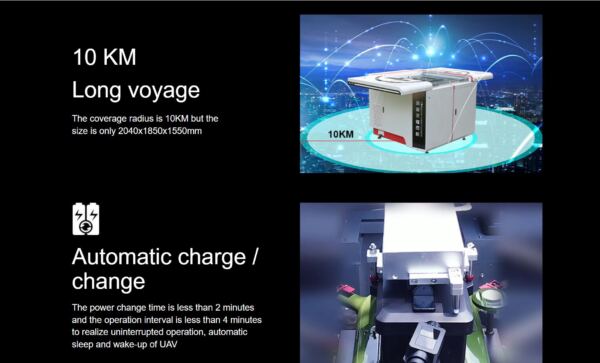

10 KM coverage
The coverage radius is 10KM, but the size is only 2040x1850x1550mm
Automatic charge / change
The power change time is less than 2 minutes and the operation interval is less than 4 minutes to realize uninterrupted operation, automatic sleep and wake-up of UAV

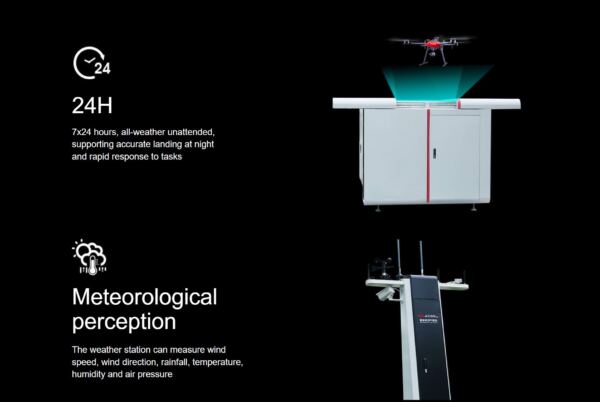

7×24 hours, all-weather unattended, supporting the accurate landing at night and rapid response to tasks
Own weather station
The weather station can measure wind speed, wind direction, rainfall, temperature, humidity and air pressure.

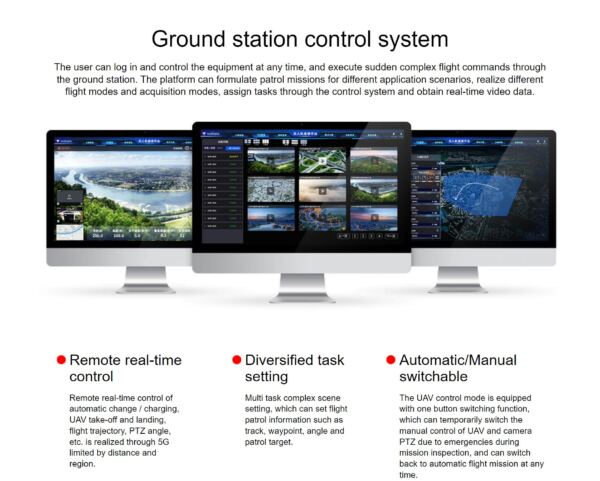

5G/LTE Ground station control system
The user can log in and control the equipment at any time, and execute sudden complex flight commands through the ground station. The platform can formulate patrol missions for different application scenarios, realize different flight modes and acquisition modes, assign tasks through the control system and obtain real-time video data.
Remote real-time control
  • Remote real-time control of automatic battery change / charging
  • UAV take-off and landing
  • View live view from the drone nest and local weather data
  • flight trajectory, payload control, etc. is realized through 5G connection to the drone and the nest.
Diversified task setting
Multi-task complex scene setting, which can set flight patrol information such as track, waypoint, angle and patrol target.
Automatic/Manual switchable
The UAV control mode is equipped with one button switching function, which can temporarily switch the manual control of UAV and camera PTZ due to emergencies during mission inspection and can switch back to automatic flight mission at any time.

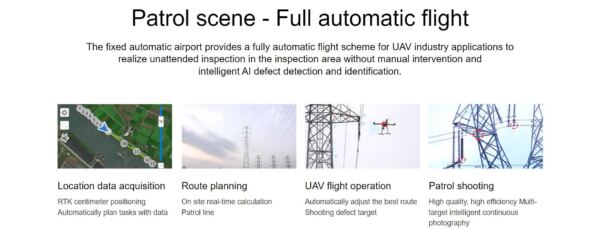

Patrol scene – Full automatic flight
The fixed automatic airport provides a fully automatic flight scheme for UAV industry applications to  realize unattended inspection in the inspection area without manual intervention and intelligent AI defect detection and identification.
Industry Application
  • Full automatic fine inspection
    of power grid UAV
  • Water conservancy UAV
    automatic River patrol
Realize unattended and offline task planning, Remote fine high
frequency automatic operation.

Reduce the pressure on power inspection personnel and cost and improve the efficiency and accuracy of UAV patrol inspection.

Value of the solution
It greatly reduces the labor intensity of power grid patrol operators and reduces the operation cost;
No professional UAV flight control personnel are required; The system can independently carry out transmission line inspection without UAV inspection experience;
The efficiency and refinement of full-automatic patrol inspection are at least three times higher than that of UAV manual patrol inspection;
The AI image recognition algorithm is used to accurately identify the target defects, collect the image information of the inspection target, send it back to the cloud through 5g network, automatically analyze and detect the defects, and issue the inspection report;
Automatic charging and power change to meet the high-frequency, continuous and normalized patrol inspection of UAV.
WK-AC100 Pro fixed automatic airport + R1000 UAV (equipped with 30x dual light camera)
Fully autonomous patrol inspection

The fixed UAV automatic airport is deployed near the power grid. The full-automatic airport UAV carries out power inspection, and the operation efficiency and inspection refinement are more than 3 times higher than that of UAV manual inspection.

Autonomous route planning

Select patrol inspection areas, independently plan flight routes, freely set patrol inspection tasks, and greatly increase patrol inspection frequency Preset waypoint action and planned path.

Automatic charge / change

Perform automatic return and precise landing after completing the task, and the mechanical arm automatically changes power for 2 minutes to support continuous flight at breakpoints. Automatically sleep and wake up the UAV to realize unattended operation.

AI defect identification and accurate remake

The UAV can accurately record the operation waypoint, monitor and record the position of safety defects in real-time, and lock targets, conduct secondary multi-angle accurate shooting.

Total weight less than 800kg
Total power 500W
Power input single phase 220VAC 50Hz 13A
Size of shutdown platform 1400x1400mm
Equipment size LxWxH = 2040x1850x1550mm
Waterproof performance IP54
Dustproof performance Class III dustproof
UPS power on time equipment standby for 3-6 hours
UAV batteries 4 sets of UAV batteries
UAV working hours continuous and uninterrupted flight (weather permitting)
Operating temperature – 25 ℃ ~ 80 ℃
UAV power supply automatic UAV charging / power change
Temperature monitoring wind speed, wind direction, rainfall, temperature, humidity and air pressure
Anti-theft reminder UPS uninterrupted, internal and external 24H video; Working mode: manual operation / unattended
Typical drone sizes
Typical drone sizes
Type Measurement Typical size
Airplane  wingspan 1500-5000mm
VTOL wingspan 2000-5000mm
Helicopter Rotor width 1500-3000mm
Quadcopter diagonal motor to motor 250-1100mm
Hexacopter as above 500-1500mm
Octocopter as above 800-1900mm
